The mirror builders trust when callbacks aren’t an option.
5mm copper-free glass. Sandblasted halo diffusion ring. IP44 rated. Shipped from Australian stock — ready for your next estate schedule.
- Australian landed stock — no 6-week lead time
- Quality-checked in Australia before dispatch
- Two-stage QA: checked before departure and on arrival
VLFR-01 — full technical data
All figures are production-verified. Contact us for third-party test reports.
| Dimensions & Weight | |
| Overall size | 700 × 700 × 36 mm |
| Glass thickness | 5 mm copper-free |
| Frame depth | 40 mm |
| Shipping weight | 8.2 kg / unit |
| Lighting | |
| CCT range | 2700 K — 6500 K (dimmable) |
| CRI | ≥90 Ra |
| Rated wattage | 24 W |
| LED lifespan | 50,000 hrs rated |
| Driver type | Constant current, flicker-free |
| Control & Safety | |
| Touch sensor | Capacitive — on/off + dim |
| Demister pad | Integrated, 220V 20W |
| IP rating | IP44 — splash proof |
| Safety film | Shatter-retention backing |
| Power cord | AU 3-pin plug, 1.2 m |
| Materials & Finish | |
| Glass | 5 mm copper-free float glass |
| Frame | Brushed black aluminium · Brushed gold aluminium |
| Halo detail | Sandblasted frosted ring, acrylic diffuser |
| Backing | Safety film + moisture seal |
| Compliance | |
| Certification | SAA / RCM — Australian market |
| Warranty | 24 months from invoice date |
| MOQ | No fixed minimum for approved trade accounts |
VLFR-01 technical drawing · front, back and side views · click to enlarge
Built for builders who can’t afford a callback.
Quality assured in Australia
Every unit is inspected and quality-verified on arrival at our Adelaide warehouse, before it goes anywhere near your site. A callback costs your crew more than the $30 you saved on a cheaper mirror.
AU stock, ready now
We hold stock in Adelaide. No 6-week factory lead time. When your estate schedule moves, our delivery moves with it. Order Monday, ship Tuesday.
Two-stage quality assurance
Every shipment is quality-checked before departure and again on arrival in Australia. No blind shipments, ever.
What’s inside the frame matters.
The VLFR-01 is specified for bathrooms that need to look good on handover and stay that way. Every material decision is documented and traceable.
5mm copper-free float glass
No copper in the backing means no edge corrosion over time. Bathrooms are humid environments — copper-free is the only specification that makes sense for builds with a 25-year structural warranty.
Sandblasted halo diffusion ring
The illuminated ring is sandblasted directly into the glass — not a sticker, not a printed film. The acrylic diffuser eliminates hot spots and gives even CCT distribution from 2700K to 6500K.
Brushed aluminium frame, two finishes
Extruded aluminium — not painted MDF. Brushed black and brushed gold, both available from AU stock. Sits flush to the wall with a shadow-gap reveal.
Shatter-retention safety film
Rear safety film holds glass fragments in position on impact. A builder code requirement in several states and a spec that reduces liability on any project with public access.

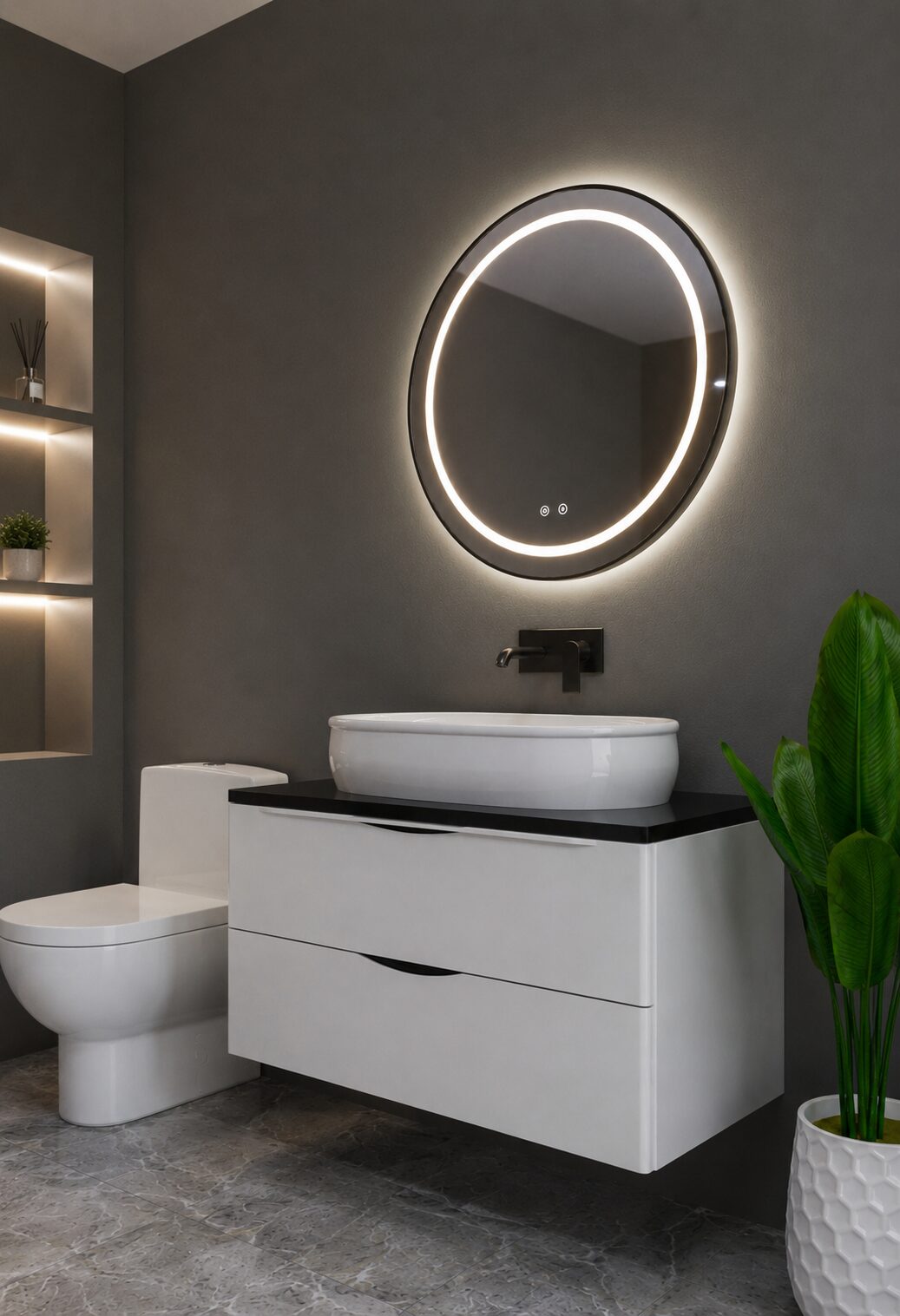

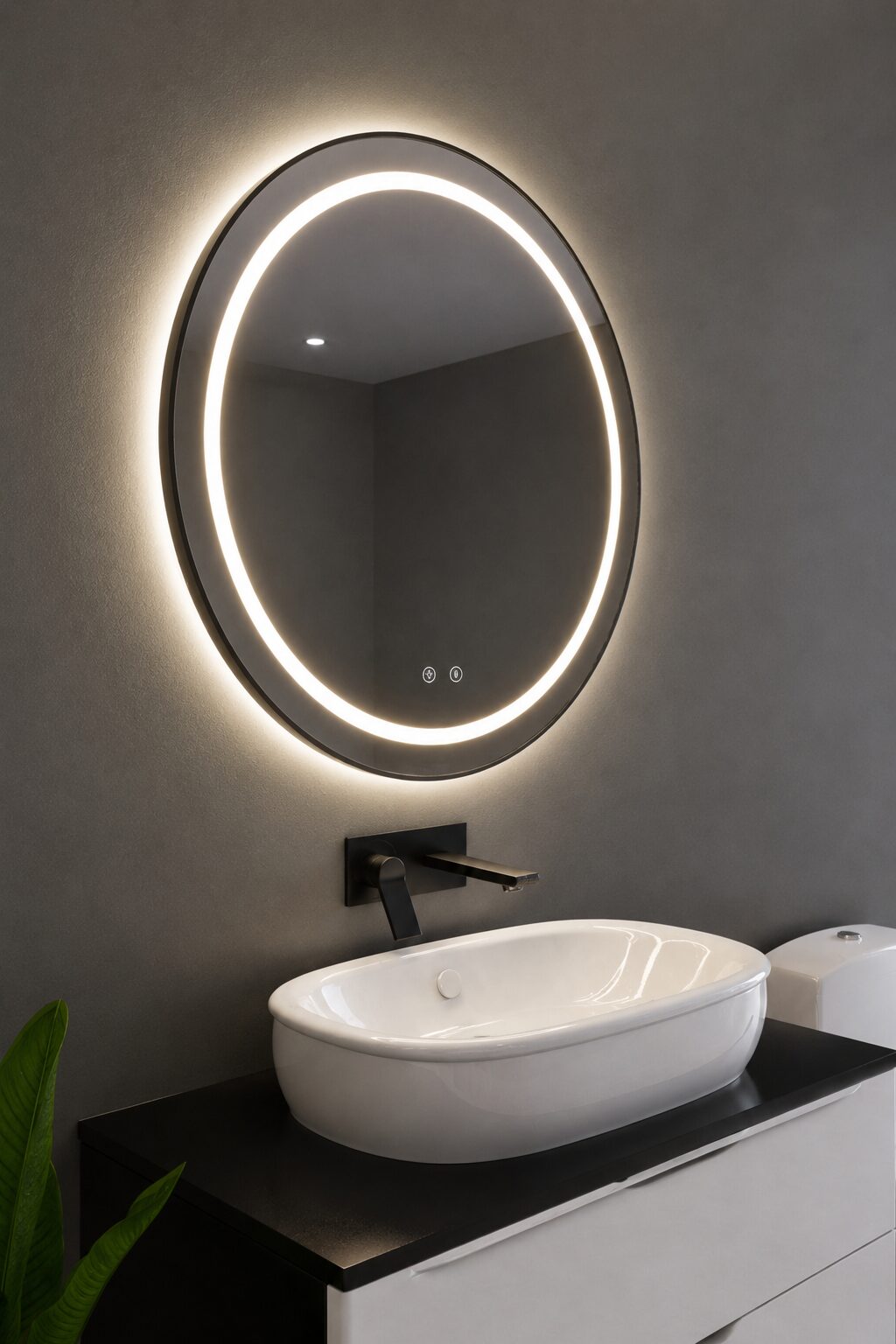

The VLFR-01 in context
