The arch format. Designed for feature bathrooms, not callbacks.
550×950mm arch in a slim matt black aluminium frame. Sandblasted halo diffusion. IP44. The feature bathroom arch, held in AU stock.
- Australian landed stock — no 6-week lead time
- Quality-checked in Australia before dispatch
- Two-stage QA: checked before departure and on arrival
VLM-07 — full technical data
All figures are production-verified. Contact us for third-party test reports.
| Dimensions & Weight | |
| Overall size | 550 × 950 × 35 mm (arch top) |
| Glass thickness | 5 mm copper-free |
| Frame depth | 35 mm |
| Shipping weight | 8.5 kg / unit |
| Lighting | |
| CCT range | 2700 K — 6500 K (dimmable) |
| CRI | ≥90 Ra |
| Rated wattage | 22 W |
| LED lifespan | 50,000 hrs rated |
| Driver type | Constant current, flicker-free |
| Control & Safety | |
| Touch sensor | Capacitive — on/off + dim |
| Demister pad | Integrated, 220V 20W |
| IP rating | IP44 — splash proof |
| Safety film | Shatter-retention backing |
| Power cord | AU 3-pin plug, 1.2 m |
| Materials & Finish | |
| Glass | 5 mm copper-free float glass |
| Frame | Matt black aluminium (primary) · Brushed gold aluminium |
| Halo detail | Sandblasted frosted arch halo, acrylic diffuser |
| Backing | Safety film + moisture seal |
| Compliance | |
| Certification | SAA / RCM — Australian market |
| Warranty | 24 months from invoice date |
| MOQ | No fixed minimum for approved trade accounts |

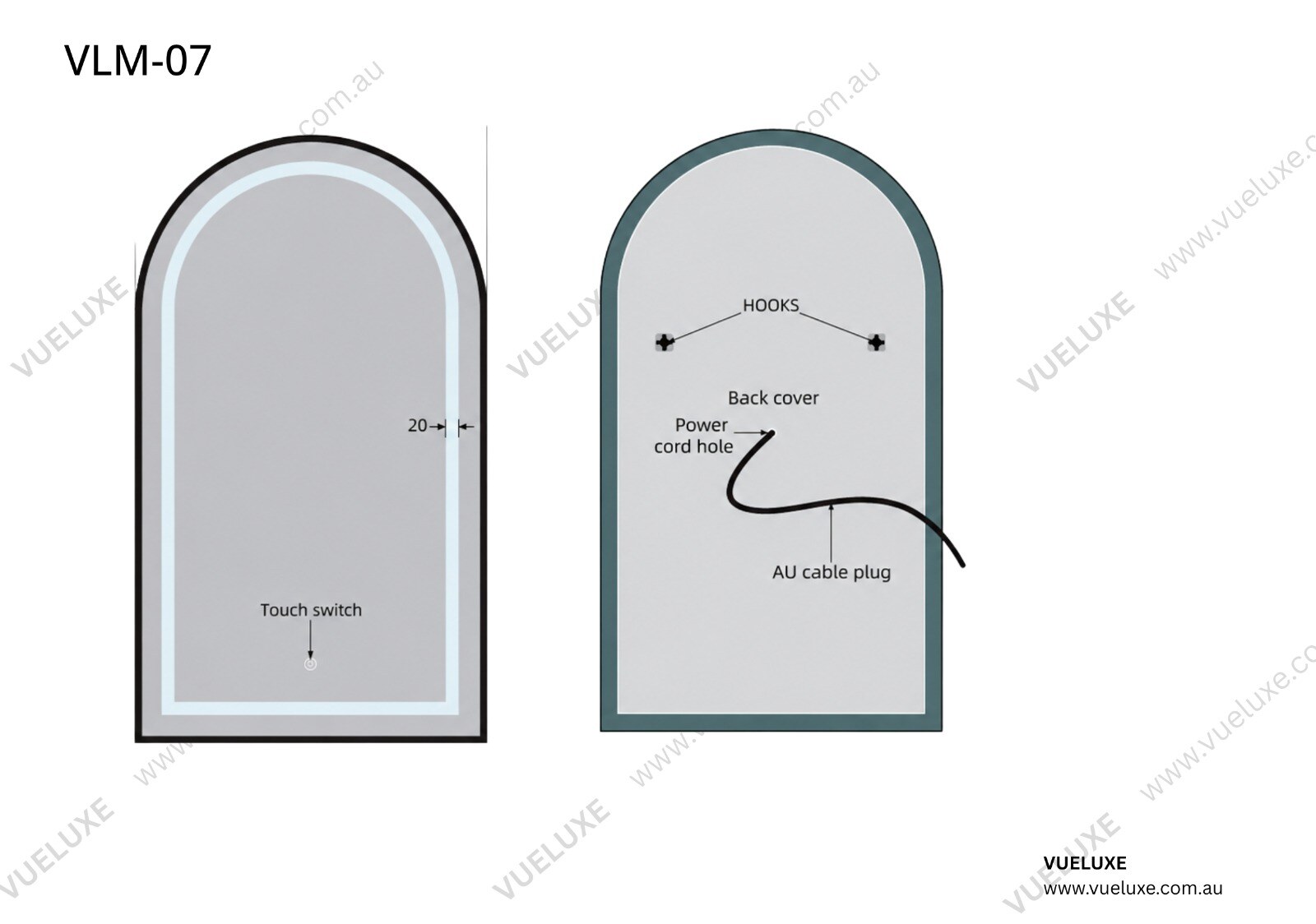

VLM-07 technical drawing · front, back and side views · click to enlarge
The arch format — built to match the spec sheet.
Quality assured in Australia
Every unit is inspected and quality-verified on arrival at our Adelaide warehouse. On a luxury fit-out, a callback reflects on the entire build team. We eliminate that risk.
AU stock, ready now
Held in Adelaide. The arch format is in stock now — not a 6-week factory order. Feature bathroom schedules don’t flex around factory lead times.
Two-stage quality assurance
Every shipment quality-checked before departure and again on arrival in Australia. The framed arch units are inspected and counted twice before they reach your site.
Specified for luxury. Warranted for the long run.
The VLM-07 arch brings the same copper-free glass and sandblasted halo to a portrait format with an arched top — the premium bathroom shape that sells feature rooms.
5mm copper-free float glass
No edge corrosion in humid environments. The spec luxury clients and their architects expect — and that you can warranty confidently.
Arch-contoured sandblasted halo
The halo ring follows the arch silhouette — sandblasted into the glass, not applied as film. Acrylic diffuser gives even illumination around the full arch perimeter.
Matt black aluminium frame
The VLM-07’s primary finish is a slim matt black extrusion that frames the arch cleanly against tile and stone. Brushed gold is also available.
Shatter-retention safety film
Rear safety film. Especially important for a mirror in a luxury bathroom with public access — satisfies AU builder code requirements in several states.

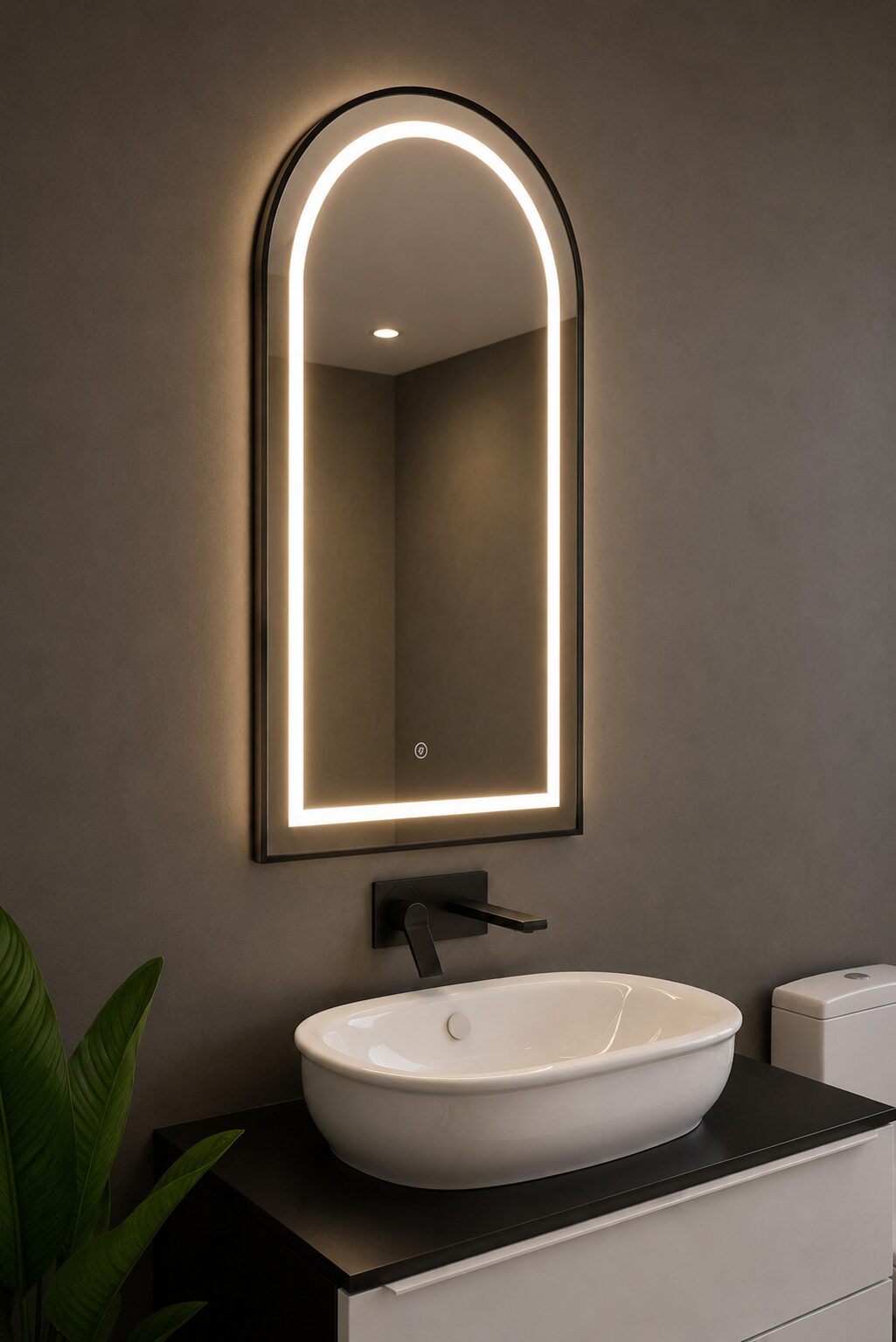

The VLM-07 in context
